1 option de remplacement trouvée

Pompe existante - Génie climatique

Marque IMP
Nom du produit NMTD PLUS 32/80-180
Longueur totale 180 mm
Alimentation réseau 1x230 V
Corps de pompe fileté/bride G 50

Pompe de remplacement - Efficacité Standard Tableau de remplacement

Nom du produit Yonos PICO-D 30/1-8
Numéro d'article 4230949
EEI ≤ 0,23
Longueur totale 180 mm
Alimentation réseau 1x230 V
Corps de pompe fileté/bride G 50
Courant nominal 0,70 A
Plage de température du fluide -10 - +95 °C

Commentaires

Convient sans aucune modification de la tuyauterie.

Informations produit

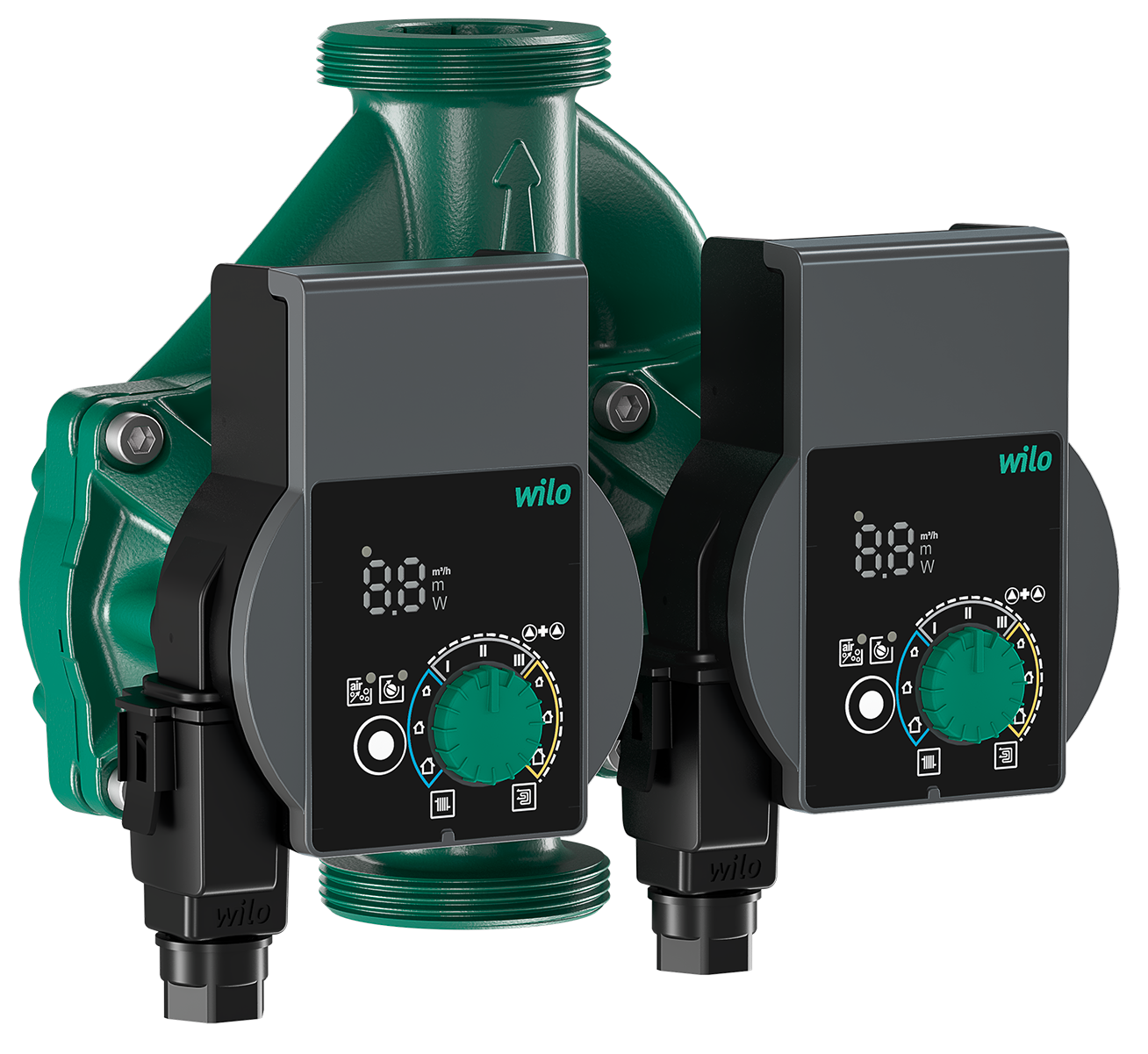

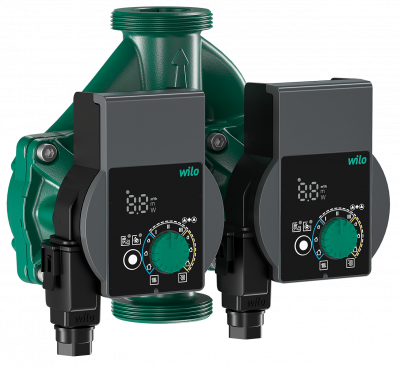

Yonos PICO-D 30/1-8

Yonos PICO-D 30/1-8
Numéro d'article : 4230949

Your advantages
  • LED display for adjusting the setpoint in 0.1 m increments and showing effective consumption
  • Electrical connection without tools using the Wilo-Connector
  • Unique pump venting function per pump
  • Twin-head pump for individual (Δp-c, Δp-v and constant speed) or parallel (Δp-c and constant speed) operation
  • Very high starting torque for reliable starting
Construction
Glandless twin-head circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control.

Application
All hot-water heating systems, air-conditioning applications, industrial circulation systems.

Equipment/function
Operating modes:
  • Constant differential pressure
  • Variable differential pressure
  • Constant speed (3 control pump curves)
Manual functions
  • Setting the operating mode in accordance with the application
  • Setting of pump output (delivery head)
  • Setting the constant speed
  • Pump venting function
  • Manual restart
Automatic functions
  • Continuous power adjustment according to the operating mode
  • Automatic restart
  • Automatic dry-running detection
Signal and display functions
  • Display of power consumption in W
  • Display of delivery head for setting
  • Display of fault messages (error codes)
  • Display of manually activated restart or pump venting function
Equipment
  • Quick electrical connection with Wilo-Connector
  • Pump venting function
  • Manual restart
  • Blocking-current proof motor
  • Particle filter
Twin-head pump function
  • Main/standby mode (automatic fault-actuated switchover/time-dependent pump cycling). If the twin-head pump is to be operated in main/standby operation, the control mode and the delivery head or speed stage C1, C2, C3 must be set so they are identical.
  • Parallel operation (efficiency-optimised peak-load activation and deactivation). If the twin-head pump is to be operated in parallel/peak-load operation, the control mode Δp-c must be set with the same delivery head or constant speed with identical speed stage C1, C2, C3.
  • An additional switchgear is required for switching the pumps, e.g. in the event of a fault.
Scope of delivery
  • Pump
  • Wilo-Connector
  • Gaskets
  • Installation and operating instructions
Technical data
  • Fluid temperature -10 °C to +95 °C
  • Mains connection 1~230 V, 50 Hz
  • Protection class IPX2D
  • Rp 1¼ screwed connection
  • Max. operating pressure 10 bar
